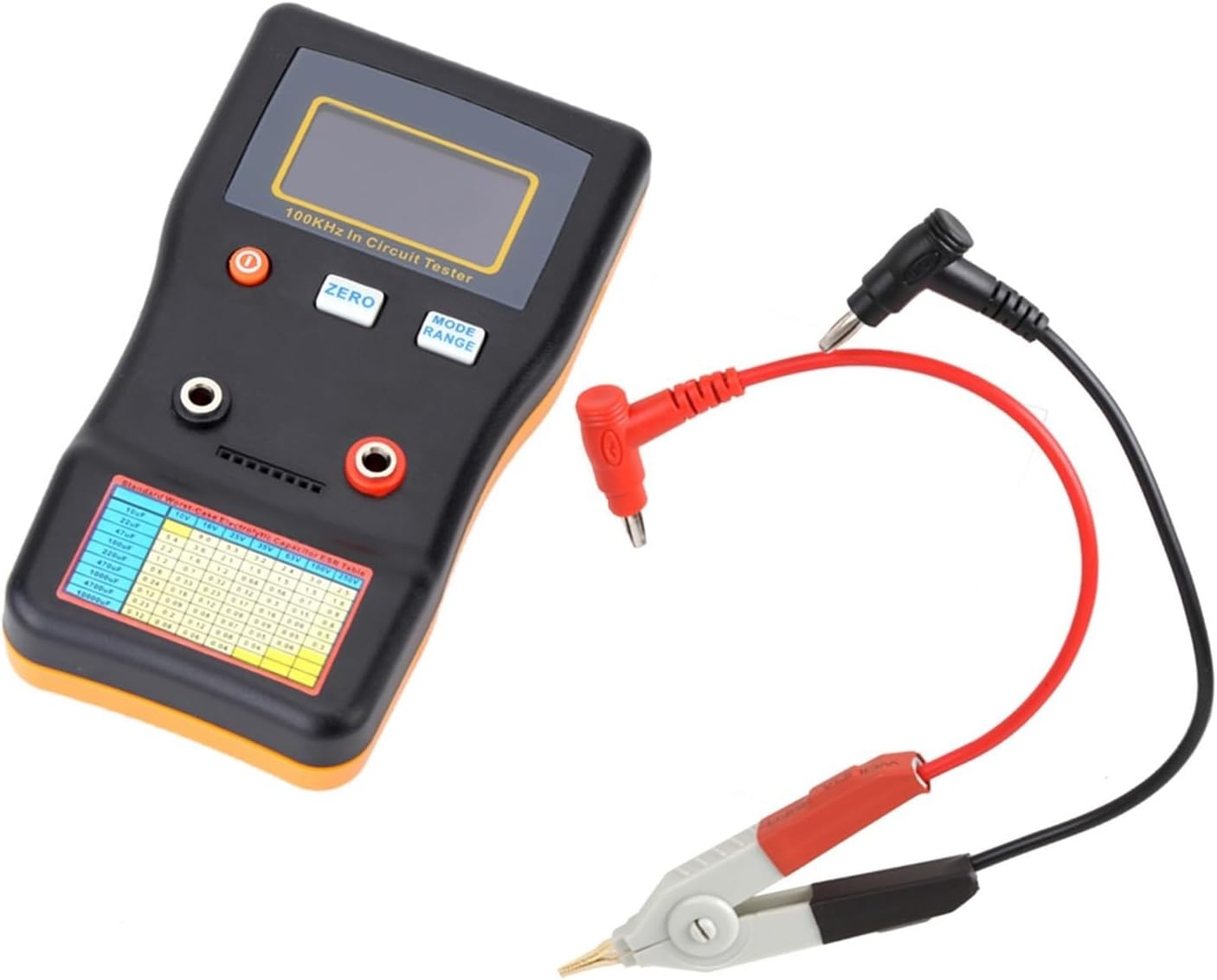

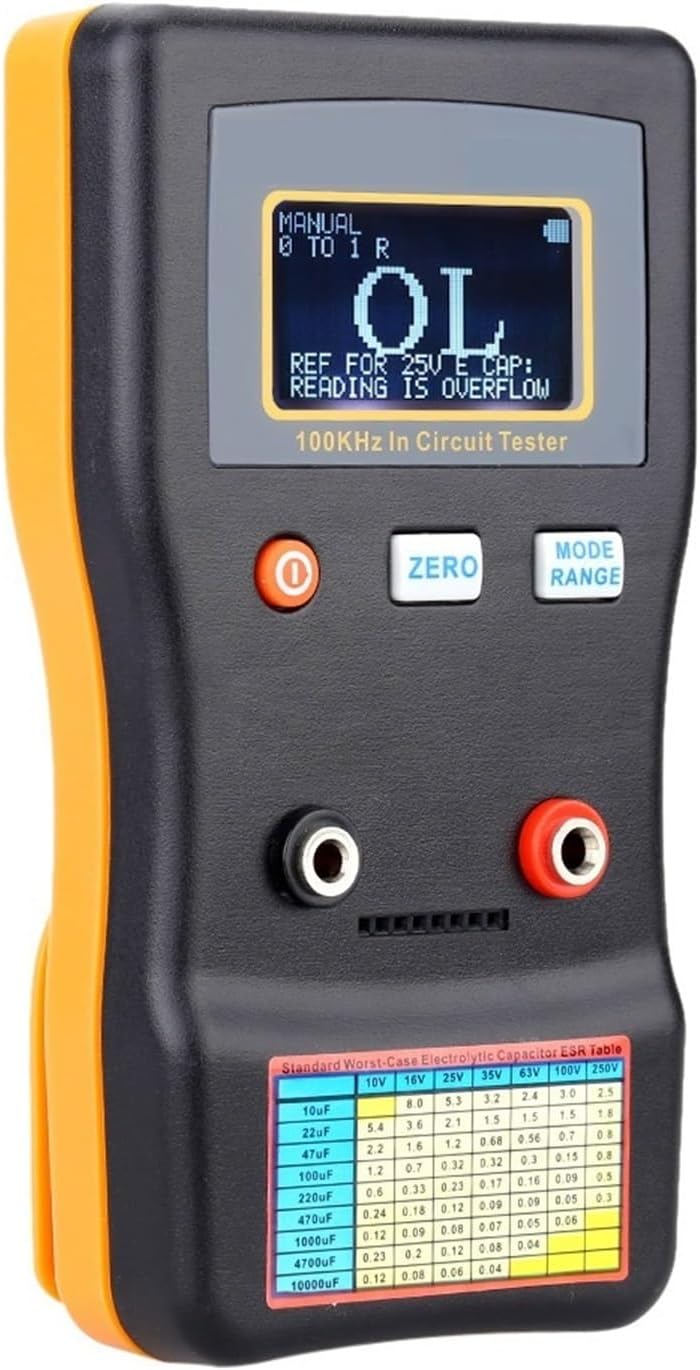

Digital Capacitance Meter Ohm Meter Professional Measuring Capacitance Resistance Capacitor Circuit Tester(6013)

Type 1 :100capacitorThis 100 V2 auto-ranging capacitor ESR and low Ohm meter measuring range from 0.001 to 100.0R, support in circuit testing. Using true 100 sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer.Features:It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).The impedance become small, and we can then measure the true series resistor value.Using this theory, we can measure the capacitor is bad/ damaged or good in condition.Our meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.Specifications:Color: BlackRange Accuracy(After zero, Refresh Time(Manual Mode)tested with 1,10,100R Auto mode take 0 to 2s, more timeresistor) depends on capacitance value.0.000 to 1.000R 1%+2Digit ~0.4s1.000 to 10.00R 1%+1Digit ~0.4s10.00 to 100.0R 2%+1Digit ~0.4sAccuracy: Up to 1%Wide Measurement Range: >1uFHigh Resolution: 4 digit, or 0.001Ohm @ 1 range<;~40mV RMS (TESTING VOLTAGE)External Power: 5V micro USBOperating Current: 0.02ABattery: 2 * AA 1.5V Battery (not included)Battery Life time: >80 HoursItem Size: Approx 14.5 * 8 * 3cm / 5.7 * 3.1 * 1.2inItem Weight: Approx 139.6g / 4.9ozPackage Size: Approx 17 * 9 * 5cm / 6.7 * 3.5 * 2.0inPackage Weight: Approx 218g / 7.7ozPackage List:1 * Capacitance Meter2 * Test Clips1 * User ManualNote:The Capacitance Meter is used for testing the internal resistance of the capacitor, not for testing capacitance value.TYPE 2:M6013 V2 capacitorThis 6013 V2 is auto-ranging capacitor capacitance meter. Us

• Easy to use: it is simple to operate and easy to use.
• Multifunctional measurement: an electronic measuring instrument with a wide range of measurement functions.
• Widely applicable: It can be used in electronic equipment repair, circuit testing, experimental research, teaching and everyday home use.
• Highly accurate measurement: has a small measurement error and high measurement accuracy, enabling the user to obtain reliable measurement data.
• Safe and reliable: Digital multimeters often have safety features such as overload protection and short circuit protection to protect the user and the instrument.
